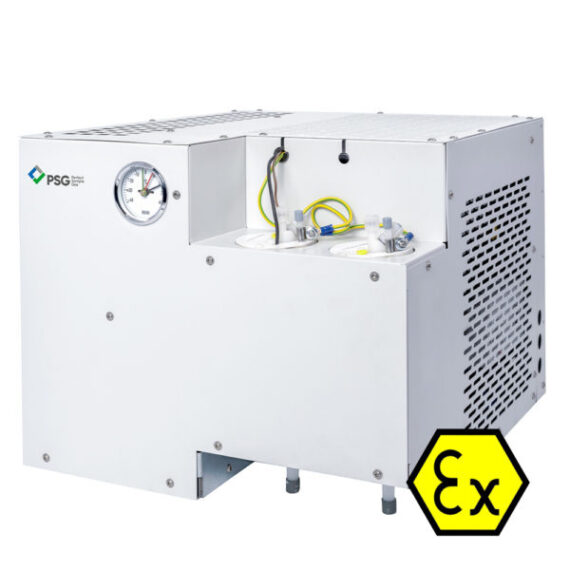

The PSG Process Cooler BCR05 ATEX sample gas conditioner carries 1-4 gas paths in applications where pure coolers are needed without additional conditioning equipment. Similar to other PSG BCR models, the BCR05 has a larger footprint than other models, along with a different component configuration and layout. Specifically designed for operation in explosive atmospheres designated as ATEX Zone 1 and ATEX Zone 2. ATEX-certification: II 2G Ex pxb de [ia] IIC T4 Gb.

These sample gas coolers can be optionally equipped with PVDF-, glass- and/or stainless steel heat exchangers. BCR gas conditioners can cool down nearly every gaseous medium and are well-suited for high gas flow rates and extremely high inlet temperatures.

High-Performance, low-maintenance, and used for continuous extractive gas analysis processes, BCRs serve primarily for exact constant lowering of sample gas dew points and thus for drying humid sample gas flows. In this way, water vapor cross sensitivities and volumetric errors are minimized and damage to analyzer sensors are avoided. Available with optional integrated peristaltic pumps for condensate removal.

Load fluctuations and high thermal stress are reliably managed with two mono or dual heat exchangers (with one or two gas paths each) housed in aluminum cylinders, ensuring optimal energy exchange between sample gas and cooling medium. The aluminum cylinder is also an effective cold storage, helping the unit run efficiently in higher temperatures.
