ECOM J2KN

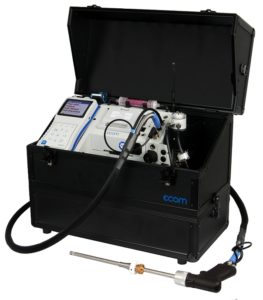

ECOM J2KNpro Easy and J2KNpro Expert portable gas analyzers simultaneously measure multiple gas constituents and ambient parameters, including: CO, CO2, NO, NO2, O2, SO2, stack draft and pressure, temperature, efficiency, excess air, and oxygen correction. A handheld remote allows complete operation of the analyzer, showing all values at a glance.

Zoom display, memory card data logging, with Bluetooth optional (Bluetooth included on Expert). The ECOM J2KN is an ideal emission analyzer where combustion controls are located away from the flue/stack test port.

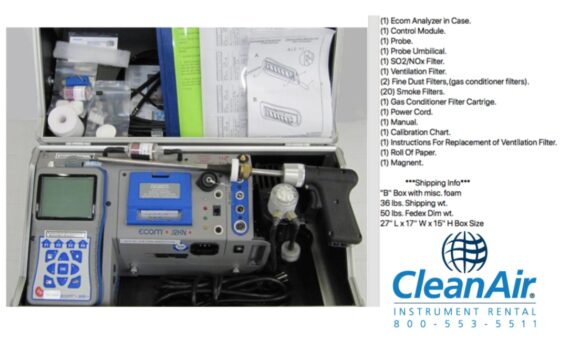

The J2KN Rental come standard with 6 gas sensors to measure O2, CO (two ranges), NO, NO2 and SO2. (Rental-Included sensors are indicated on the “Available Sensors” tab.)

Other Features

3.5+ lpm pump
Advanced DAS 2.0 software compatible plus bluetooth data transmission
Spare consumables: filters, printer paper, smoke test disks, etc.
Core temperature of the instrument is monitored continuously
Internal temperature compensation software assures accurate sensor response 20-104°F
AC: 110/220V 50/60Hz (User selectable)

Dimensions

Instrument: 18.5 ” x 10″ x 12.75″ (pro Easy, pro Expert)
Probe: 13″ Length x 3/8″ O.D. Inconel with pistol grip handle
Sample Line: 15′ flex hose with thermocouple wire
Weight: 28 lbs. (pro Easy), 29 lbs. (pro Expert)

	J2KNpro Easy	J2KNpro Expert	J2KN Rental
Maximum Number of Sensors	6 Electrochemical Sensors	9 Gas Sensors (6 Electrochemical and 3 NDIR)	6 Electrochemical Sensors
Electrochemical Sensor Options	O2, CO, CO High, NO, NO2, SO2, Combustibles	O2, CO, CO High, NO, NO2, SO2, Combustibles	O2, CO, CO High, NO, NO2, SO2, Combustibles
NDIR Sensor Options		CO2, Methane, High CO
Bluetooth Link		✓	Available Upon Request
Fresh Air Bypass/Purge Switch		✓	✓
Li-Ion Batteries 4-6 hours run time 6V, 7.2 Ah (base) 2V 2Ah (remote)	✓	✓	Available Upon Request Older Models: Lead Acid, 12V

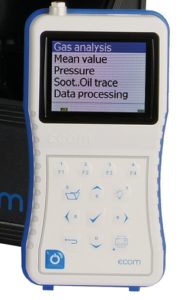

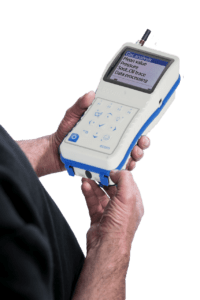

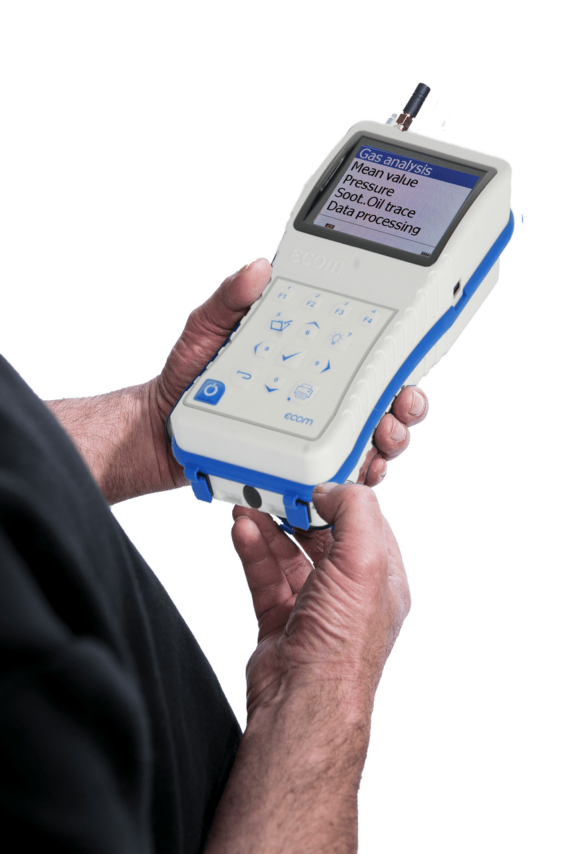

Wireless Handheld Remote Display with Zoom and Adjustable Contrast	✓	✓	✓
Data Logging with Memory Card	✓	✓	✓
USB Connectivity	✓	✓	✓
On-Board Printer	✓	✓	✓
15ft Sample Line with 13-inch Inconel Probe (Other lengths available)	✓	✓	✓
Automatic CO Purge Pump to Prevent Over-Saturation	✓	✓	✓
Peltier Cooler Sample Conditioner	✓	✓	✓
Peristaltic Pump for Automatic Moisture Removal	✓	✓	✓
Heated Sensor Block for Thermal Stability	✓	✓	✓
Digital Flow Meter Display	✓	✓	✓
Self-Leak Check	✓	✓	✓
Calculation Capabilities Averaging Tests Mass Emission CO2 Efficiency Losses Excess Air O2 Correction	✓	✓	✓
Flue Gas, Ambient, & Sensor Temperature Sensors	✓	✓	✓

Measurements	Formula	Range	Accuracy*	Resolution	Sensor Life^§	Sensor Type
Oxygen^†	O2	± 0-20% vol	± 0.2% vol	0.1% vol	4-5 Years	Electrochemical
Carbon Monoxide^†	CO	0-10,000 ppm	± 2% Measured	1.0 ppm	6-8 Years	Electrochemical
Carbon Monoxide (High)^†	CO	0-63,000 ppm	± 2% Measured	5.0 ppm	6-8 Years	Electrochemical
Hydrogen Sulfide	H2S	0-1,000 ppm	± 5% Measured	1.0 ppm	4 Years	Electrochemical
Nitric Oxide^†	NO	0-5,000 ppm	± 5% Measured	1.0 ppm	6-8 Years	Electrochemical
Nitric Oxide (Low)	NO	0-500 ppm	± 5% Measured	0.1 ppm	6-8 Years	Electrochemical
Nitrogen Dioxide^†	NO2	0-1,000 ppm	± 5% Measured	1.0 ppm	6-8 Years	Electrochemical
Nitrogen Dioxide (Low)	NO2	0-100 ppm	± 5% Measured	0.1 ppm	6-8 Years	Electrochemical
Sulfur Dioxide^†	SO2	0-5,000 ppm	± 5% Measured	1.0 ppm	6-8 Years	Electrochemical
Combustibles	CxHy	0-4.0% vol		0.01% vol	5 Years	Pellistor
Methane	CH4	0-3.0% vol	± 3% Measured	0.001% vol	5 Years	Infrared
Carbon Dioxide	CO2	0-20%	± 5% Measured	0.1% vol	5 Years	Infrared
Carbon Monoxide	CO	1,000-63,000	± 5% Measured	10 ppm	5 Years	Infrared
Propane		0-2,000 ppm	± 5% Measured	1.0 ppm	5 Years	Infrared
Gas Temperature		32-1,832° F**	± 0.5%
Ambient Temperature		40-122° F	± 1° F
O2 Correction		0-20% O2	Calculated
Carbon Dioxide	CO2	0-CO2 Max of Fuel	Calculated
Smoke Scale		0-9
Draft / Pressure		± 40″ H2O	± 2% Measured	0.004″ H2O	10 Years	DMS
* Accuracy: When calibrated prior to use per ECOM America, Ltd. specifications. ** Probe-Dependent (Standard: 32° F-932° F; High Temp: 32° F- 2000° F) § Sensor life will vary due to frequency of use and application.

Part Number	Item
	Bluetooth Link
	External Antenna for increased wireless range
	Calibration Gas Kit
	Heated Sample Line (custom lengths available)
	Stack Flow Velocity Probe
	Soot Test Probe
	1-Ft. Flex Tip Probe
	e-Comply Software
