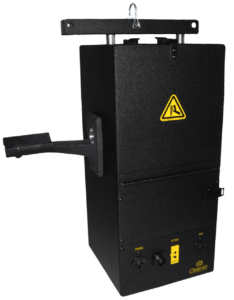

The CleanAir Sample Oven Compartment is a light-weight, aluminum sample unit oven compartment (“hot box”) used for EPA testing methods that require an out-of-stack heated filter. Features a rugged cast aluminum probe support arm, monorail support hanger, impinger compartment slide rails, and two access doors. Compatible with industry standard umbilicals, probes, and impinger compartments. For more information on this method, please visit the EPA’s CFR 40 website.

Specifications

• Voltage Requirement: 120 V / 220V
• Power Requirement: 500 W

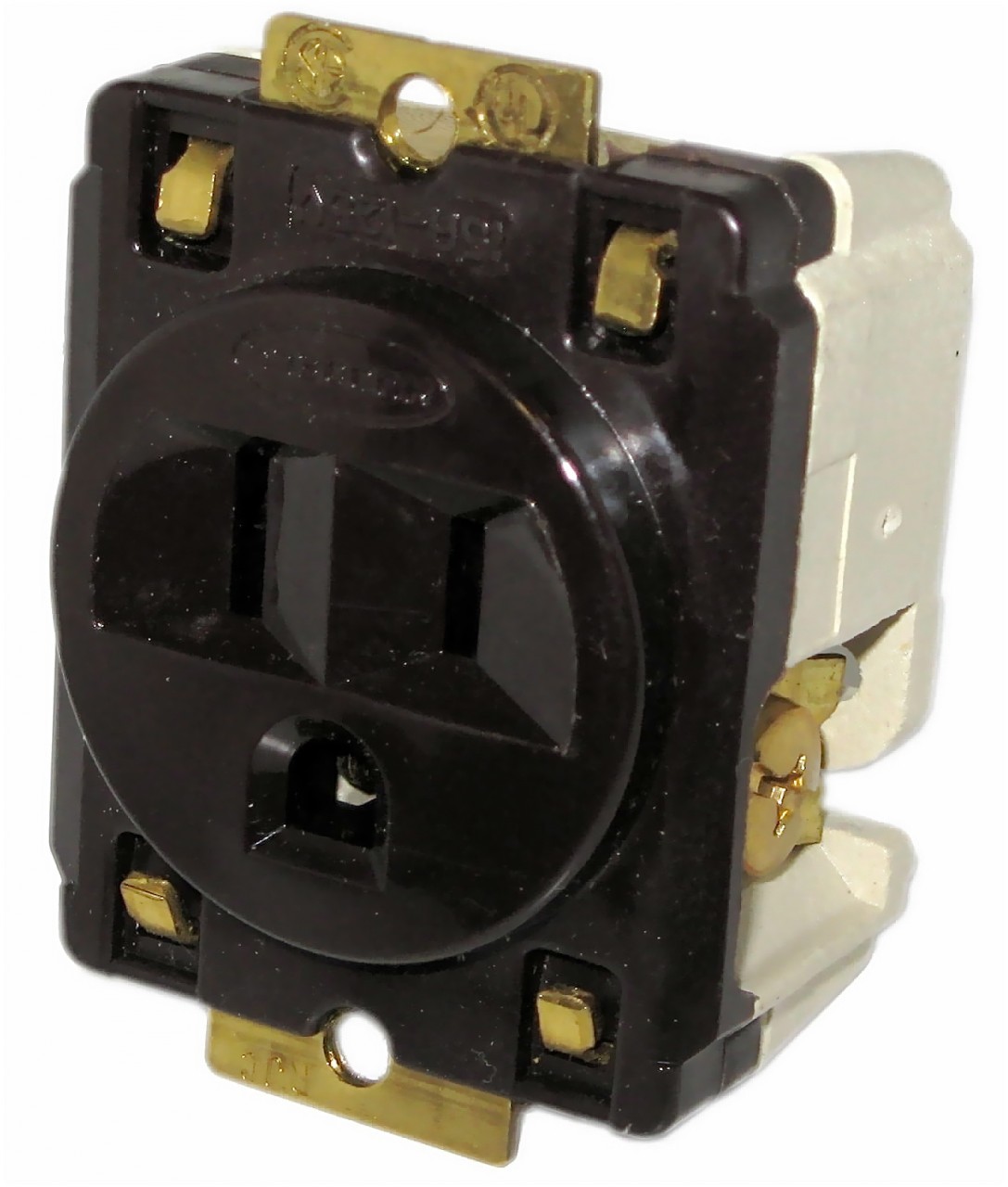

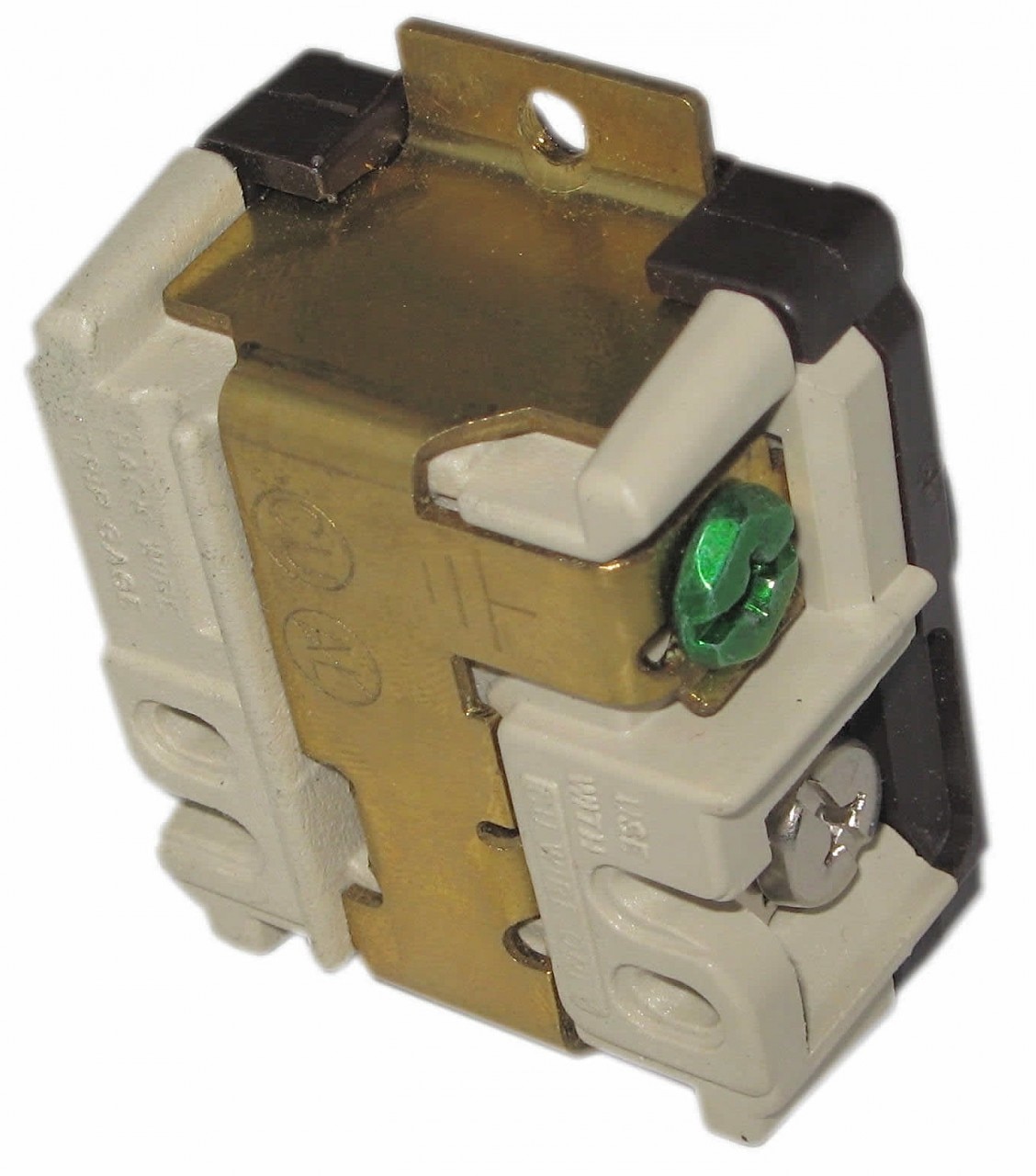

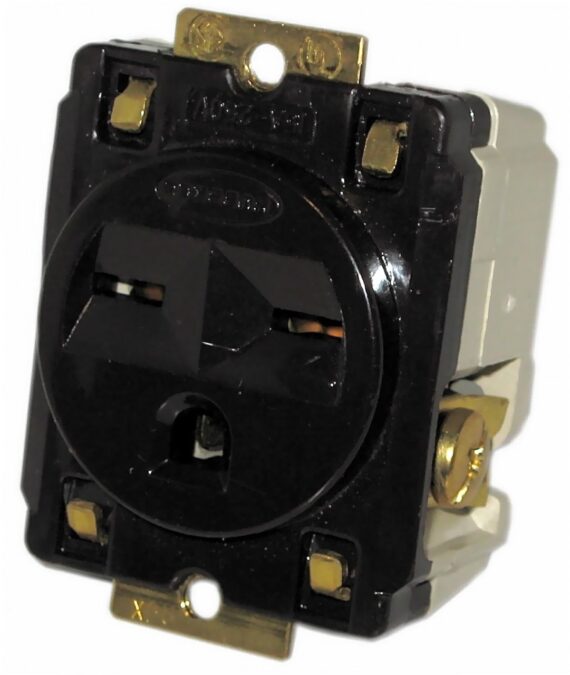

• Auxiliary Power Output Connection: 3 pin 120 V receptacle
• Probe Power Output Connection: 3 pin 120 V receptacle
• Thermal Couple Connection: K-Type panel mount
• External Dimensions (h x w x d): 23.5″ x 10.75″ x 17.5″(597 mm x 273 mm x 444 mm)
• Internal Dimensions (h x w x d): 19.5″ x 8.5″ x 8.25″ (495 mm x 216 mm x 210 mm)
• Weight: 18 lbs. (8.2 kg)

Features

• Two access doors reduce the train turn-over time by allowing removal of filter assembly from either side of the unit.
• Filter outlet port has a silicone gasket to minimize heat loss.
• Double wall aluminum construction reduces weight and makes it easier to handle in the field.
• Insulation maintains heat for reduced power consumption and reduces the potential for delays from blown breakers.

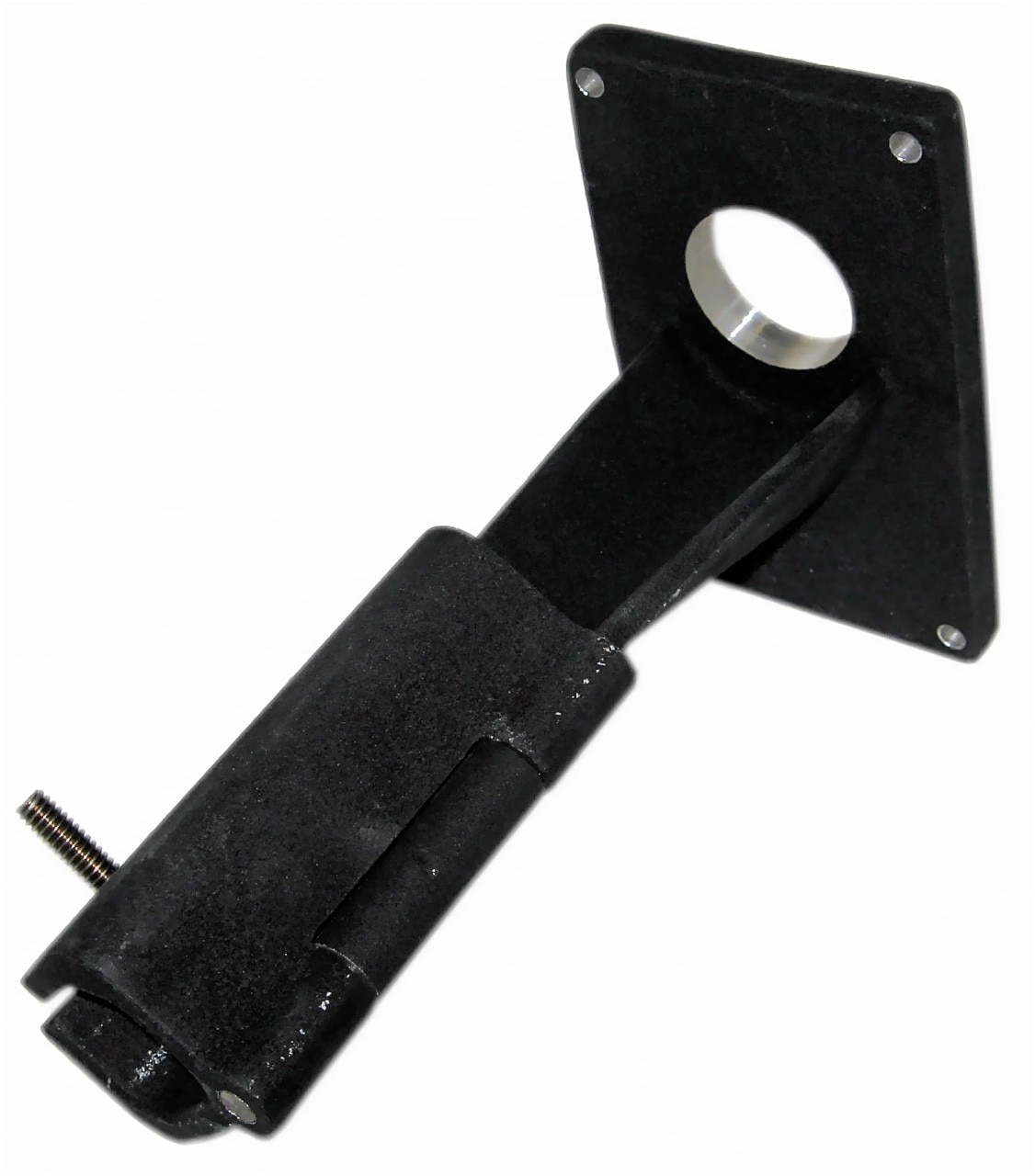

• Two-piece cast aluminum probe support arm holds the probe securely in place and maintains a solid connection with filter assembly during port changes.
• Mono-rail support hanger allows for use with an overhead unistrut system and safer testing conditions.
• Top handle allows for safer handling during port changes.
• Slide rails for mounting impinger bucket reduces labor and time associated with port changes.
• Probe and auxiliary power output connections eliminate the need for extension cords and the associated trip hazards.
• Panel mounting of Type K Thermocouple connection eliminates potential fraying and damage associated with un-mounted thermocouple connections.
