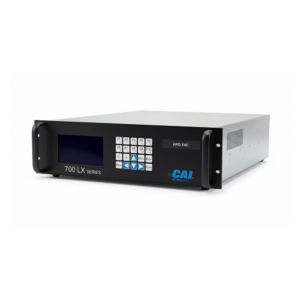

CAI 700 LX HFID
$0.00
CAI 700 LX Series analyzers are the first generation capable of remote access and control. FID analyzers from CAI are fast, reliable, and now, controllable remotely.
CAI 700 LX Series analyzers are the first generation capable of remote access and control.
FID analyzers rely on the Flame Ionization Detection principle to measure the total concentration of hydrocarbons in a gas sample. The gas sample becomes ionized in the flame and the electrostatic field causes the charged particles to migrate, creating a small current that is measured by the amplifier. The current is directly proportional to the amount of hydrocarbon in the sample.
CAI HFID analyzers can measure THC in ppm or percent levels. They are ideal for applications such as:
- Remote Access and Control
- VOC abatement/scrubber efficiency
- Combustion engine testing
- EPA Method 25A compliance monitoring
- Continuous emission monitoring (CEMs)
- Vehicle emissions
- Fermentation monitoring
- Carbon bed break-through detection
- Process gas analysis
Features
- Upgraded Electronics over Previous Models
- User-Friendly Operation
- Built-In Operating System
- Proven Analytical Components
- Remote Emulation/Control Software using TCP/IP
- Measures from 30 ppm up to 30,000 ppm
- Auto Calibration and Ranging
- Electronic Flow Control
- Temperature Stabilized Detector
- Automatic Fuel/Air Shut-off
- Comprehensive Diagnostics
![]() |
Manufacturer User Manual: 700 LX HFID | |
![]() |
Manufacturer User Manual: 700 LX Series Web Emulator Instructions | |
![]() |
Manufacturer Product Spec Sheet: 700LX HFID |

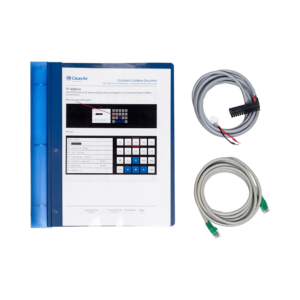

CleanAir Engineering provides world-class service, support, and technical expertise alongside every instrument rental. All air monitoring equipment is inspected or calibrated before shipping from one of our four technical centers. Each rental includes additional accessories and components, providing added convenience and reliability to ensure the success of your project. Contact us for more information.
