CleanAir Multiple Zone Temperature Controller

Full Screen

CleanAir Multiple Zone Temperature Controller

$2,074.80

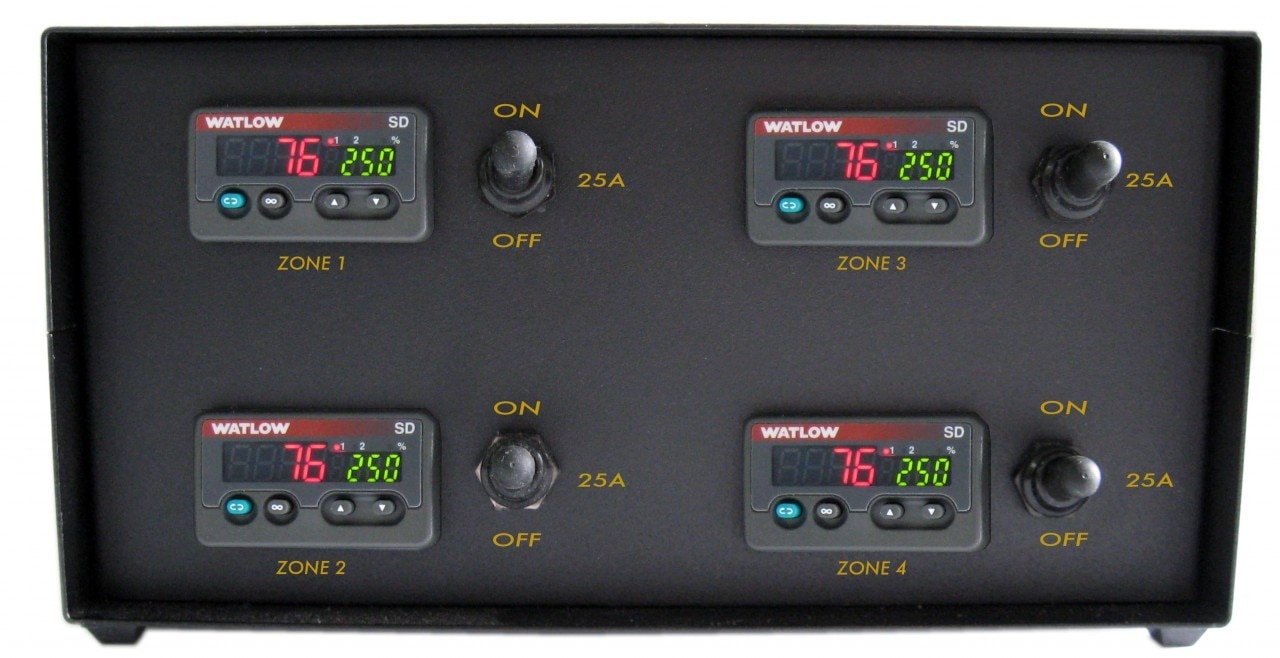

CleanAir Multiple-Zone Temperature Controllers are an excellent choice for controlling multiple instruments simultaneously such as heated sample lines, ovens, heated head pumps, filters, and probes. The standard unit features four programmable PID digital temperature controllers, four 25 amp circuit breaker switches, 25 amp solid state relays, type K thermocouples, and a 3 pin Amphenol electrical connector. Call a Sales Representative for custom configuration and availability.

Purchase Proposal
SKU:
0725PM
Tag:

Multiple Zone Temperature Controller

Multiple zone temperature controllers are an excellent choice for controlling multiple instruments simultaneously such as heated sample lines, ovens, heated head pumps, filters, and probes. The standard unit features four programmable PID digital temperature controllers, four 25 amp circuit breaker switches, 25 amp solid state relays, type K thermocouples, and a 3 pin Amphenol electrical connector. Call a Sales Representative for custom configuration and availability.
art Number
0725PM

Universal Temperature Controller Features:

  • Designed to protect heated sample lines, heated filter boxes, and probes from destruction by excess thermal stress related to failure of the solid state relay.
  • 25A Manual Reset Circuit Breaker for Overload Protection
  • Calibrated with a NIST Traceable pyrometer every 50 º F, from 50- 600º F, with a tolerance of 2º F or C.
  • *Call for options on thermocouple type, voltage, and power requirements.
  • Service/Calibration
  • Multiple Rack Mount Temperature Controllers are available!
