Ametek Model 9900RM SO2 Analyzer

Ametek Model 9900RM SO2 Analyzer

Asset Certification Sheets

Rental Available

$0.00

Questions? Call us at 800-553-5511. To build a rental quote or purchase proposal request, please log in or create an account. Trouble viewing pricing? Please log in.

SKU:
Ametek 9900RM

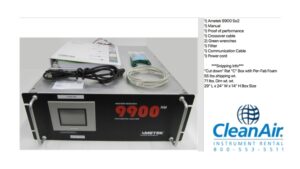

Ametek Model 9900RM SO2 Analyzer

The Ametek 9900RM SO2 analyzer utilizes a UV detector to measure levels of SO2. A single or multi-component gas analyzer, the 9900 operates as a standalone device or can be integrated into a Continuous Emission Monitoring (CEM) system. Available in a 19″ rack mount (RM) it can be configured to measure most gas species that absorb in the ultraviolet (UV) range. Up to five components can be measured simultaneously, making the 9900 highly economical for multi-component gas analysis applications. Free of interference from water and CO2, the 9900 uses AMETEK’s proprietary high-resolution UV technology in a dual-beam, multiple-wavelength configuration, supported by powerful data processing.

The 9900RM has replaced the 9000RM.



Call CleanAir for repair or service of your instrument today. In-Stock parts with three technical service centers nationwide—Chicago, Pittsburgh and Houston. Contact us today!
Part Number
Ametek Model 9900RM SO2 Analyzer

Ametek Model 9900RM Specifications:

  • Weight: 40 lbs.
  • Dimensions: 23.7” x 19” x 7”
  • Rackmount: 19″
  • Power: 120VAC (105VAC – 132VAC) 47 to 63 Hz
  • Outputs: Configurable – 4 – 20mA 0-5V, Analog – 0 – 20mA
  • Detection Method: Ultraviolet – Photometric
  • Range: 50 – 5,000ppm
  • Response Time: <30 sec. to 90% full scale
  • Accuracy: <1% of full scale. – Gas Flow Rate: 0.25 – 5 L/min
  • Drift: 2% full scale/24 hours
  • Operating Temperature: -41oF – 122oF
  • Linearity: + 1% of full scale
  • Cell Construction: 316 stainless steel with quartz windows.
