Aeroqual S500 Handheld Custom Kit

Portable and accurate real time air quality information made affordable.

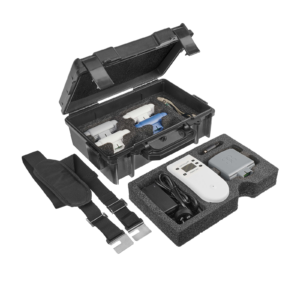

The Outdoor Air Quality Test Kit (Pro) is for consultants and air quality professionals who want a full set of tools to measure a range of common pollutants in ambient outdoor air. The Outdoor Air Quality Test Kit (Pro) features Aeroqual’s proven Series 500 portable monitor that can be used to measure a range of pollutants by simply swapping the sensor heads for the pollutant you wish to monitor. The kit includes the following sensors: particulate matter sensor (PM_2.5/PM₁₀), four gas pollutant gas sensors (NO₂, O₃, CO, VOC), and a combined temperature and relative humidity sensor. Now you can perform full outdoor air quality assessments using instruments tried and proven by researchers and air quality professionals around the world.

Series 500 Monitor base including: LCD digital display, Lithium battery and charger, in-built datalogger, monitor to USB cable, PC software.
Particulate Matter Sensor PM₁₀ / PM_2.5
Select 4 Sensors
Temperature & Humidity Sensor
Large Carry Case

Benefits

Complete outdoor air quality monitoring kit for measurement of criteria air pollutants and VOCs
Series 500 monitor with inbuilt real-time data logger
Active fan sampling sensor heads (PM_2.5/PM₁₀, NO₂, O₃, CO, VOC) ensure high accuracy measurements
Zero and span calibrate sensors in the field
Long life lithium battery technology
Connect direct to PC via USB
Free PC software (Windows 7 and above)
By adding the optional outdoor enclosure can be left in situ for short term monitoring

Applications

Wide area air quality surveys
Checking pollution “hotspots”
Personal exposure monitoring
Short term fixed monitoring networks

Step 1 – Gather data

Use the monitor and interchangeable sensors to take spot measurements, or log data over time and space. The monitor is designed to fit comfortably in the hand and the long life lithium battery gives you a full day in the field.

Step 2 – Download data

Using the Series 500 model, connect to a PC and download your measurements using Aeroqual’s free software. Data can be exported to Excel. The Series 300 and 500 models can also output data directly via 0-5V and RS232.

Step 3 – Analyze data

Analyze your data to identify trends, discover leaks or pollution hotspots, or dive deep into the numbers for research. Data can be tagged to a location, and data is tied to the individual monitor ID. This makes large studies, involving multiple monitors and locations, easy to manage.

Other Products from Aeroqual

All sensors use active fan sampling

Measurements	Formula	Range (ppm)	Accuracy	Resolution (ppm)	Sensor Type	Part Number
Ammonia	NH3	0-100	<±0.5ppm + 10%	0.1	GSE	SHENG
Ammonia	NH3	0-1000	<±5 ppm +15%	1	GSS	SHNH
Carbon Dioxide	CO2	0-2000	<±10ppm + 5%	1	NDIR	SHCD
Carbon Dioxide	CO2	0-5000	<±20ppm + 5%	1	NDIR	SHCE
Carbon Monoxide (Leak Detector)	CO	0-1000	<±2ppm + 15%	1	GSS	SHCO
Carbon Monoxide	CO	0-25	<±0.5 ppm 0-5 ppm <±10% 5-25ppm	0.01	GSE	SHECM
Carbon Monoxide	CO	0-100	<±1 ppm 0-10 ppm <±10% 10-100ppm	0.1	GSS	SHECN
Chlorine	Cl2	0-10	<±0.02ppm + 10%	0.01	GSE	SHECL
Formaldehyde	CH2O	0-10	<±0.05 ppm 0-0.5 ppm <±10% 0.5-10ppm	0.01	GSE	SHEF
Hydrogen	H2	0-5000	<±10ppm + 10%	1	GSS	SHHA
Hydrogen sulfide	H2S	0-10	<±0.05 ppm 0-0.5 ppm <±10% 0.5-10ppm	0.01	GSE	SHEHS
Hydrogen sulfide	H2S	0-100	<±0.5 ppm 0-5 ppm <±10% 5-100ppm	0.1	GSE	SHEHT
Methane	CH4	0-10,000	<±20ppm + 15%	1	GSS	SHMT
Nitrogen Dioxide	NO2	0-1	<±0.02 ppm 0-0.2 ppm <±10% 0.2-1 ppm	0.001	GSE	SHENW
Nonmethane Hydrocarbons	NMHC	0-25	<±0.1 ppm + 10%	0.1	GSS	SHVN
Ozone	O3	0-10	<±0.01ppm + 7.5%	0.01	GSE	SHEOZ
Ozone	O3	0-10	<±0.1ppm + 15%	0.01	GSS	SHOZG
Ozone	O3	0-0.5	<±0.008 ppm 0-0.1 ppm <±10% 0.1-0.5 ppm	0.001	GSS	SHOZL
Ozone	O3	0-0.15	<±0.005 ppm	0.001	GSS	SHOZU
Ozone	O3	0-0.05	<±0.002 ppm	0.001	GSS	SHOZS
Particulate Matter	PM with RH Correction	0.001-1.000 µg /m3	± 0.005 µg /m3 + 15 %	0.001 µg /m3	LPC	SHPM
Perchloroethylene	C2Cl4	0-200	<±5 ppm 0-50 ppm <±10% 50-200 ppm	1	GSS	SHPE
Sulfur Dioxide	SO2	0-10	<±0.05 ppm 0-0.5 ppm <±10% 0.5-10ppm	0.01	GSE	SHESO
Sulfur Dioxide	SO2	0-100	<±0.5 ppm 0-5 ppm <±10% 5-100ppm	0.1	GSE	SHESP
Volatile Organic Compounds	VOC	0-2000	<±0.2ppm + 10%	<1000ppm: 0.1 >1000ppm: 1	PID	SHVOCH
Volatile Organic Compounds	VOC	0-30	<±0.02ppm + 10%	0.01	PID	SHVOC
Volatile Organic Compounds	VOC	0-25	<±0.1 ppm + 10%	0.1	GSS	SHVM
Volatile Organic Compounds	VOC	0-500	<±5ppm + 10%	1	GSS	SHVP
Sensor Types GSE — Gas Sensitive Electrochemical GSS — Gas Sensitive Semiconductor LPC — Laser Particle Counter NDIR — Non-Dispersive Infrared PID — Photo Ionization Detector

Part Number	Item
AERO-HHS500L	Monitor base with lithium battery and power pack, alarms, data-logging and PC Software
AERO-HHTRH	Plug-in temperature and RH sensor for Series 300, and 500 monitors
AERO-HHENC	Water- and dust-proof enclosure for Series 300 and 500
AERO-ASR10	Remote sensor kit for Series 300/500 remote location measurement
AERO-ASR13	Remote sensor kit for Series 300/500 remote location measurement (NEMA 2/IP41)
AERO-ASR32	Cigarette lighter adapter for handheld monitors (Lithium/NiMH compatible)
AERO-ASR33	Bracket for wall-mounting handheld monitors
AERO-ASR36	Replacement Lithium battery (blue) for handheld monitors
AERO-ASR40	Protective carry case for a Series 300/500 monitor plus four gas sensor heads
AERO-ASR41	Robust case with shoulder strap for Series 300/500 monitor plus eight gas sensor heads
AERO-ASR42	Calibration accessory for handheld monitors
