CleanAir Method 29 Sampling Train
$10,514.40 – $12,070.24

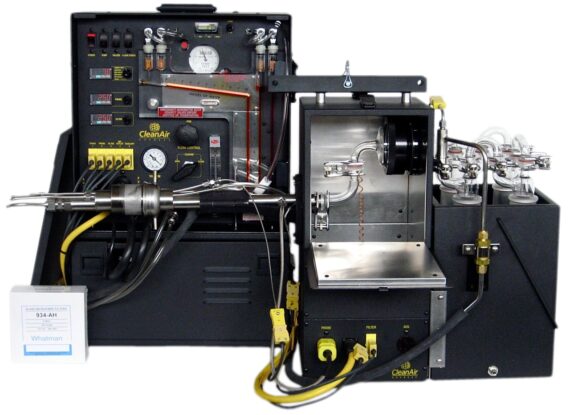

The CleanAir Method 29 Train is suited to perform testing for Metals Emissions from Stationary Sources. Other pollutants can be collected in the impinger portion of the system providing the proper reagent is utilized.
The CleanAir Method 29 Train is suited to perform testing for Metals Emissions from Stationary Sources. Other pollutants can be collected in the impinger portion of the system providing the proper reagent is utilized. For more information on this method, please visit the EPA’s CFR 40 website.
Specifications
- Power Requirement: 120V and 220V configurations in stock
- Thermocouple Connections: Type K
- Cabinets: Welded Aluminum Detachable/Stackable Meter and Pump
- Temperature Controllers: Solid State with 6 Channel Selector
- * Tapered or Barrel Style Liners and Nozzles are stock items
- U.S. Price List Only
- Method 29 Train Layout
- Meter Box Console Leak Check Procedure
Included Components
| Part Number | Item |
|---|---|
| 0028 | Isokinetic Control Console with Pump |
| 0032 | Sample Oven Compartment |
| 0030 | Impinger Compartment |
| 050029 | Method 29 Glassware Set Ball Joint or Ball Joint O-Ring |
| 0034 | Stainless Steel Impinger Outlet |
| 036050QC | 50′ Umbilical Cable with Stainless Steel Quick Connects |
| 0106BS | 6′ Stainless Steel Heated Method 5 Probe with Liner and Geometric Calibration Report |
| 0140 | Stainless Steel Probe Port Adaptor Seal Assembly |
| 0400NP | Complete Set of Borosilicate Nozzles (1/8″, 3/16″ 1/4″. 5/16″, 3/8″ and 1/2″) with nuts and ferrules |
| 0158 | Sample Recovery Kit |
| 0621.26Q | 8.26cm Quartz Glass Fiber Filters (Box of 100) |
No additional documents available for this product
