CleanAir Isokinetic Sampling Nozzle Set
$361.29 – $742.23
CleanAir Isokinetic Sampling Nozzle Sets are available in Pyrex (borosilicate glass), quartz, stainless steel, or Inconel (Alloy 600). When using a straight quartz or Pyrex (borosilicate) nozzle, we suggest using a Teflon union. These gas sampling nozzles can be used for various EPA Methods, including Method 5.
CleanAir Isokinetic Sampling Nozzle Sets are available in Pyrex (borosilicate glass), quartz, stainless steel, or Inconel (Alloy 600). When using a straight quartz or Pyrex (borosilicate) nozzle, we suggest using a Teflon union. These gas sampling nozzles can be used for various EPA Methods, including Method 5.
Individual nozzles are also available for purchase.
Nozzles Sets are available in the following materials:
- Pyrex (Borosilicate) (PB)
- Quartz (QB)
- 316 Stainless Steel (SB)
- Inconel (IB)
- Tapered Pyrex (Borosilicate) 14/20 (PT20)
- Tapered Pyrex (Borosilicate) 14/35 (PT35)
- Tapered Quartz 14/20 (QT20)
- Tapered Quartz 14/35 (QT35)
* Stainless Steel and Inconel Alloy 600 Nozzles include Nut and Ferrule.

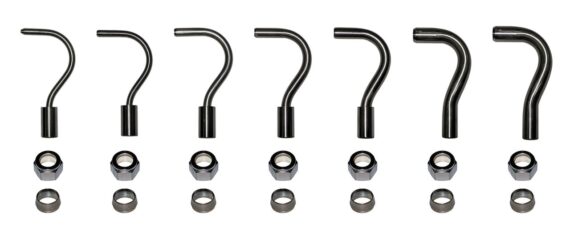

Button Hook Nozzle Sets with 5/8″ Shank
| Part Number | Material | Nozzle Size |
|---|---|---|
| NS7- | (PB), (QB), (SB), (IB) | 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2 |
Button Hook Nozzle Sets with 14/35 Female Taper
| Part Number | Material | Nozzle Size |
|---|---|---|
| NS7- | (PT20), (PT35), (QT20), (QT35) | 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2 |
| Part Number Extension | Description |
|---|---|
| PB | Borosilicate Glass with 5/8″ Shank (max temp. 900°F or 480°C) |
| PT20 | Borosilicate Glass with 14/20 Female Taper (max temp. 900°F or 480°C) |
| PT35 | Borosilicate Glass with 14/35 Female Taper (max temp. 900°F or 480°C) |
| QB | Glass Quartz with 5/8″ Shank (max temp. 1650°F or 900°C) |
| QT20 | Glass Quartz with 14/20 Female Taper (max temp. 1650°F or 900°C) |
| QT35 | Glass Quartz with 14/35 Female Taper (max temp. 1650°F or 900°C) |
| SB | Stainless Steel with 5/8″ Shank (max temp. 1200°F or 650°C) |
| IB | Inconel (Alloy 600) with 5/8″ Shank (max temp 1600°F or 871°C) |
No additional documents available for this product
